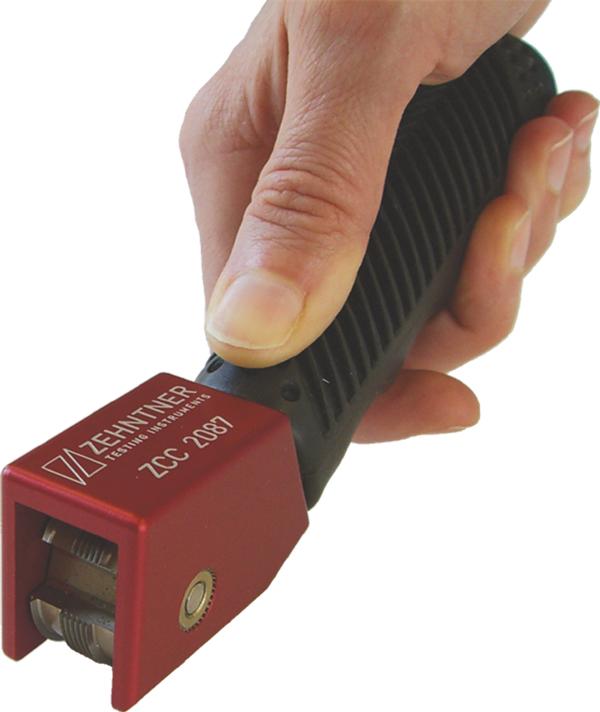

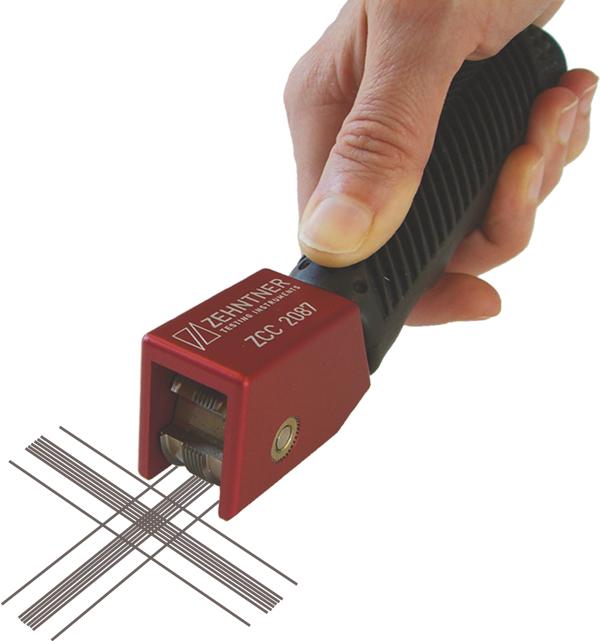

- User-friendly cross-cut tester for evaluation of adhesion of single- or multi-coat systems

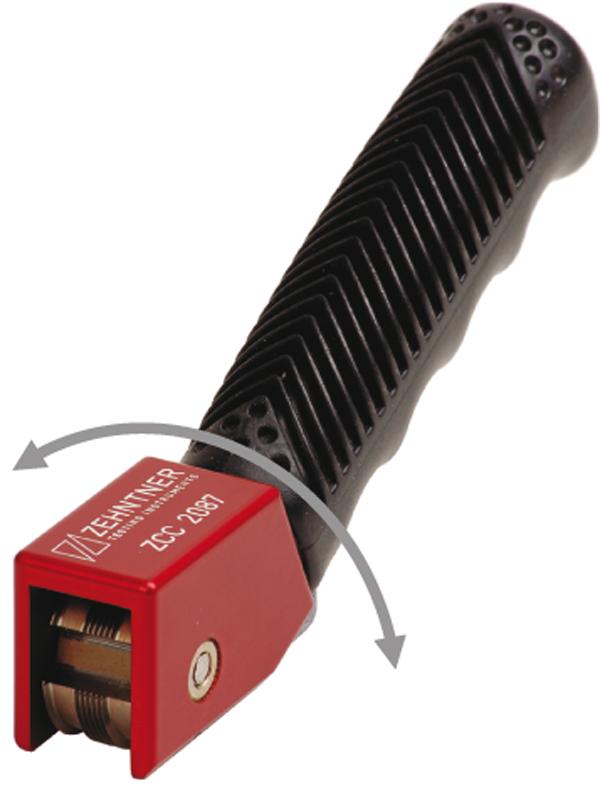

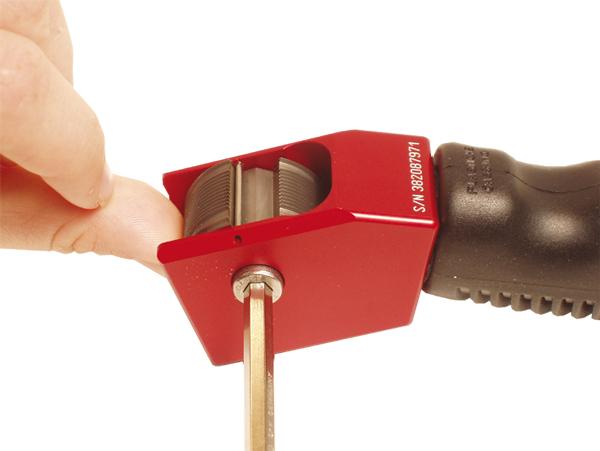

- Specially designed flexible cutting head with exchangeable cutting tool ensures reproducible cross cuts
- Easy to handle and also suitable for untrained users
Click here to request a quotation for this product. If possible, please indicate the desired version.
Versions
| Versions | Art. No. | Description | Multi-blade cutting tool |
|---|---|---|---|
 |

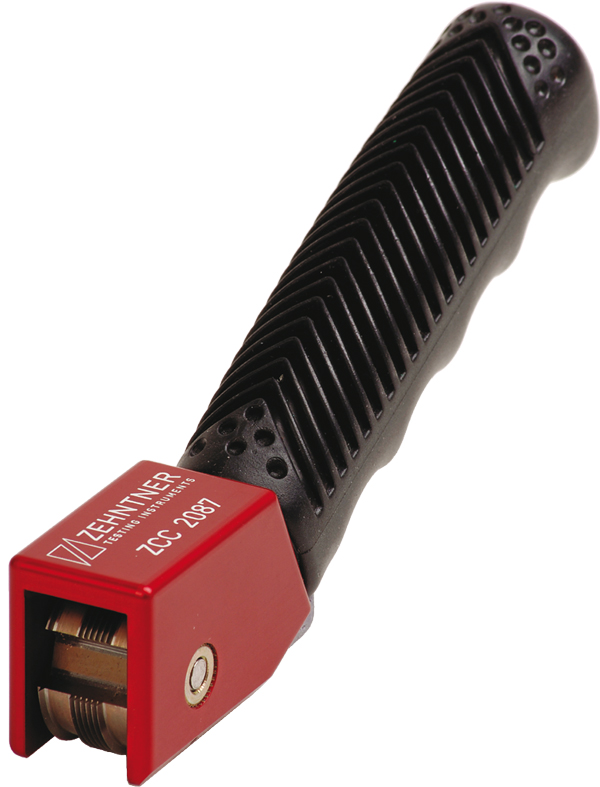

2087.1 | ZCC 2087 Cross-cut Tester Price request |
1x6 blades with spacing of blades 1 mm (0.04") according to ISO 2409 |
 |
2087.2 | ZCC 2087 Cross-cut Tester Price request |
1x6 blades with spacing of blades 2 mm (0.08") according to ISO 2409 |
 |
2087.3 | ZCC 2087 Cross-cut Tester Price request |
1x6 blades with spacing of blades 3 mm (0.12") according to ISO 2409 |
 |
2087.4 | ZCC 2087 Cross-cut Tester Price request |

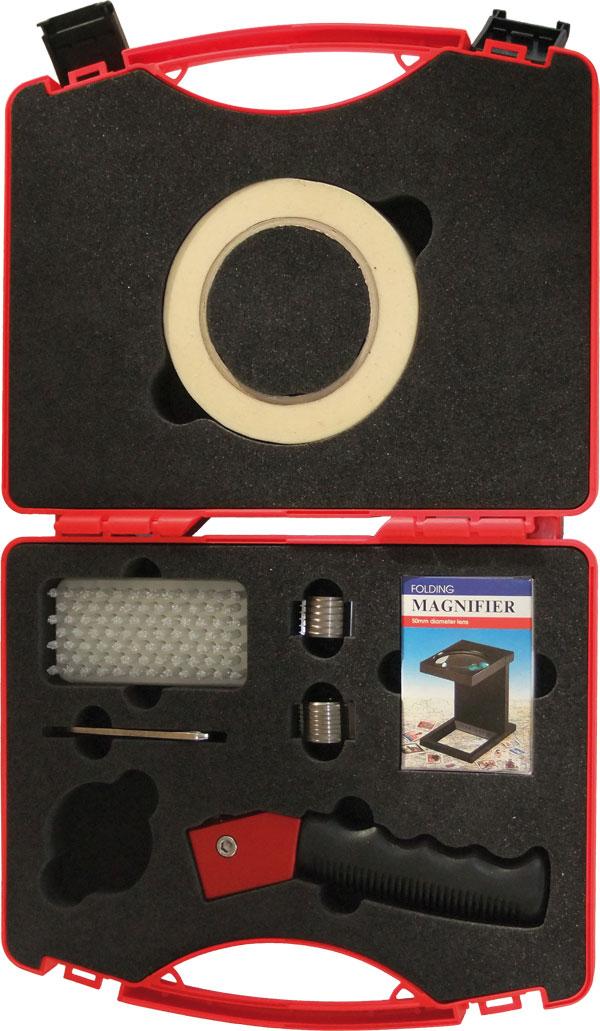

3x6 blades with spacing of blades 1 mm (0.04"), 2 mm (0.08") and 3 mm (0.12"), exchangeable, according to ISO 2409 |
 |
2087.5 | ZCC 2087 Cross-cut Tester Price request |
1x11 blades with spacing of blades 1 mm (0.04") according to ASTM D3359 |
 |
2087.6 | ZCC 2087 Cross-cut Tester Price request |

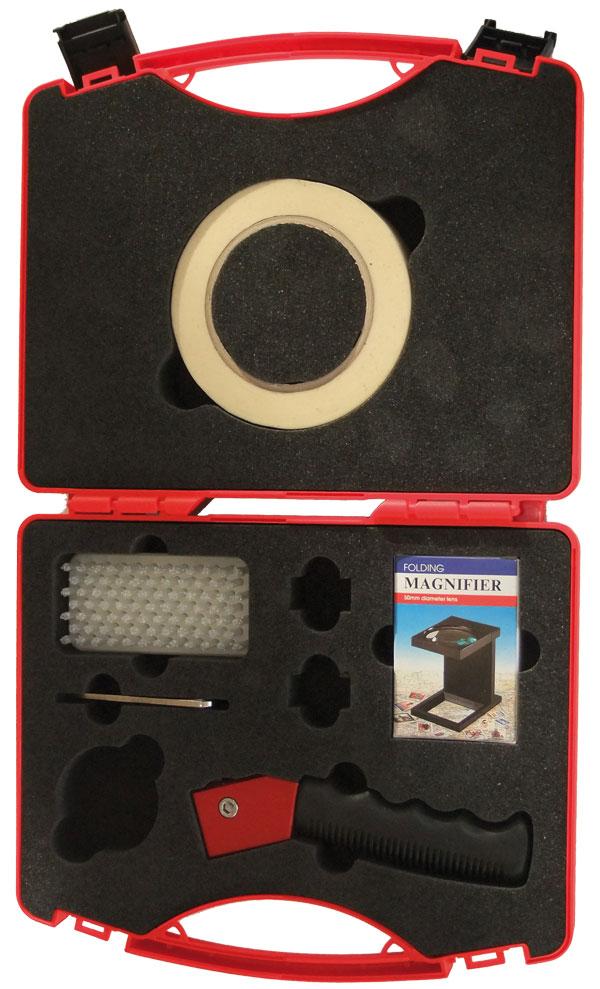

1x6 blades with spacing of blades 2 mm (0.08") according to ASTM D3359 |
 |
2087.15 | ZCC 2087 Cross-cut Tester Price request |
1x11 blades with spacing of blades 1.5 mm (0.06") |

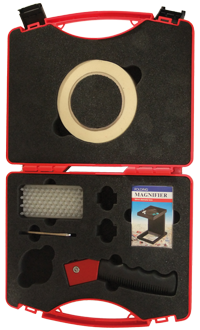

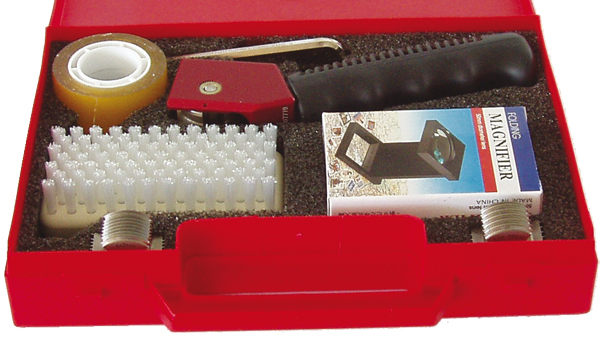

Standard delivery
| Standard delivery | |
|---|---|
 |
1 cross-cut-tester with flexible cutting head and multi-blade cutting tool according to requested version |
 |

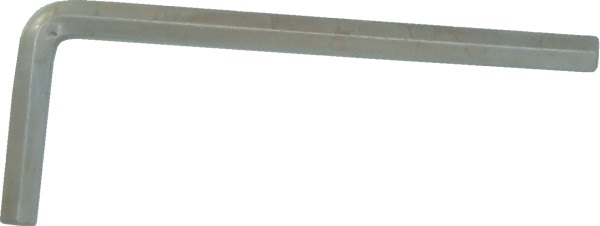

1 allen key |
 |

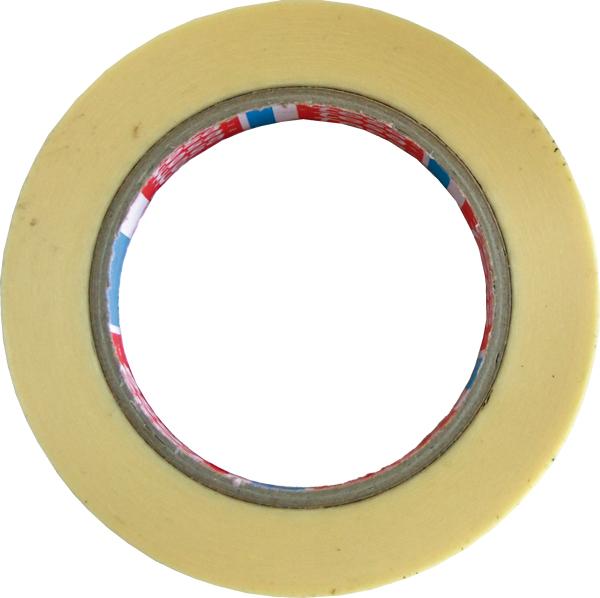

1 roll adhesive tape ACC753, length: 50 m (164 ft), width: 25 mm (0.98“) |
 |
1 magnifier |
 |
1 brush (for versions ZCC 2087.1 to ZCC 2087.4) |
 |
1 instruction manual |
 |
1 certificate of manufacturer |
 |

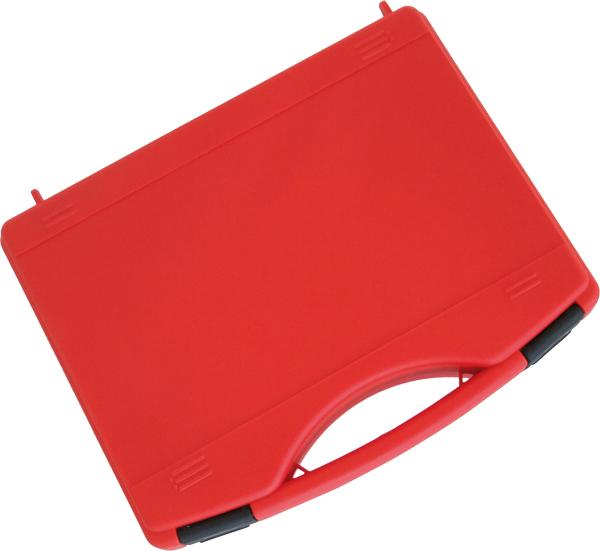

1 carrying case |
| Features | |
|---|---|
| The flexible cutting head avoids unbalanced pressure by the operator | |
| The cutting head provides a constant, parallel guide of the cutting edges to the substrate | |
| Ergonomic handle | |
| Also suitable for untrained users | |
Options
| Option | Art. No. | Description |
|---|---|---|
 |

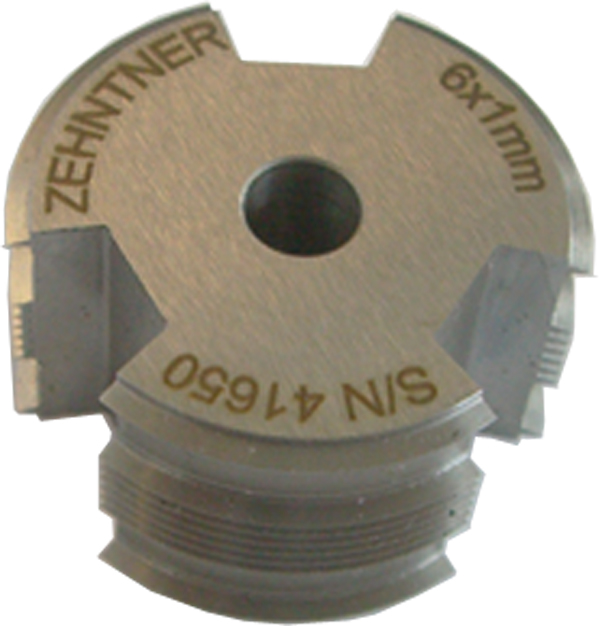

ACC064 | multi-blade cutting tool with 6 blades, 1 mm (0.04“) spacing of blades acc. to EN DIN ISO 2409 |
 |

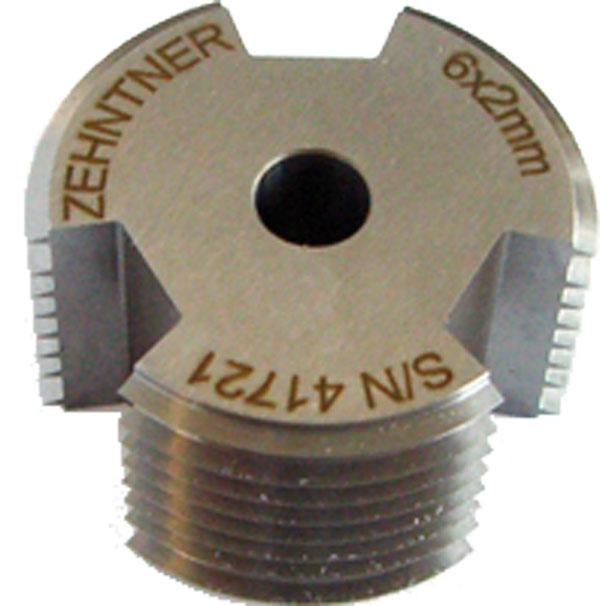

ACC094 | multi-blade cutting tool with 6 blades, 2 mm (0.08“) spacing of blades acc. to EN DIN ISO 2409 |
 |

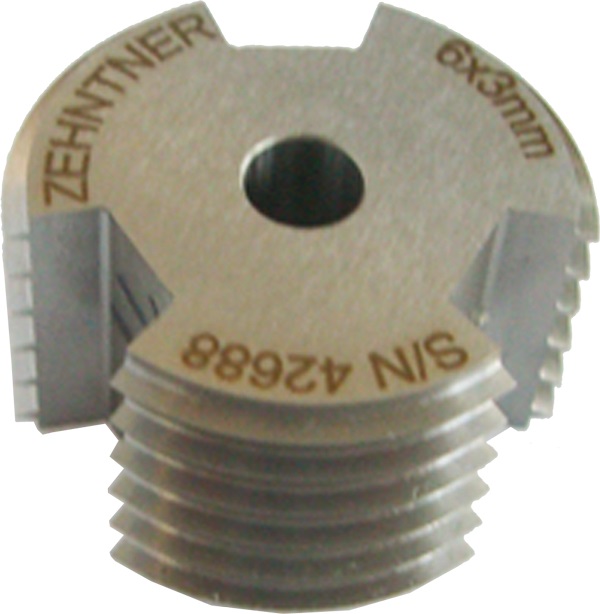

ACC095 | multi-blade cutting tool with 6 blades, 3 mm (0.12“) spacing of blades acc. to EN DIN ISO 2409 |
 |

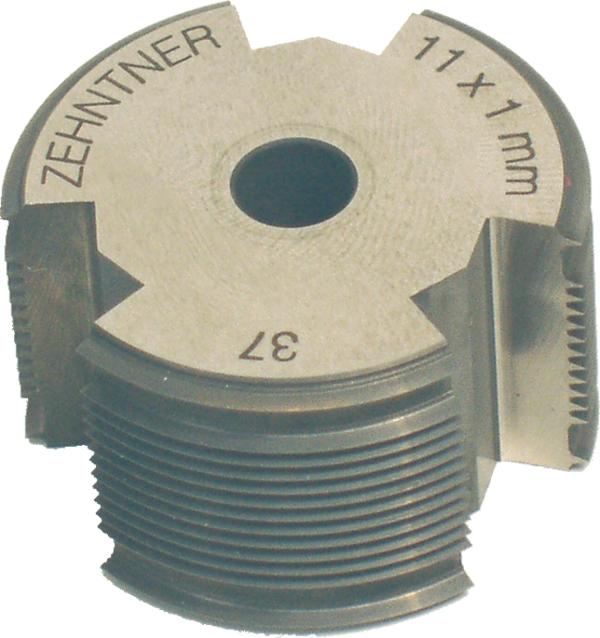

ACC096 | multi-blade cutting tool with 11 blades, 1 mm (0.04“) spacing of blades acc. to ASTM D3359 |
 |
ACC098 | multi-blade cutting tool with 6 blades, 2 mm (0.08“) spacing of blades acc. to ASTM D3359 |
 |

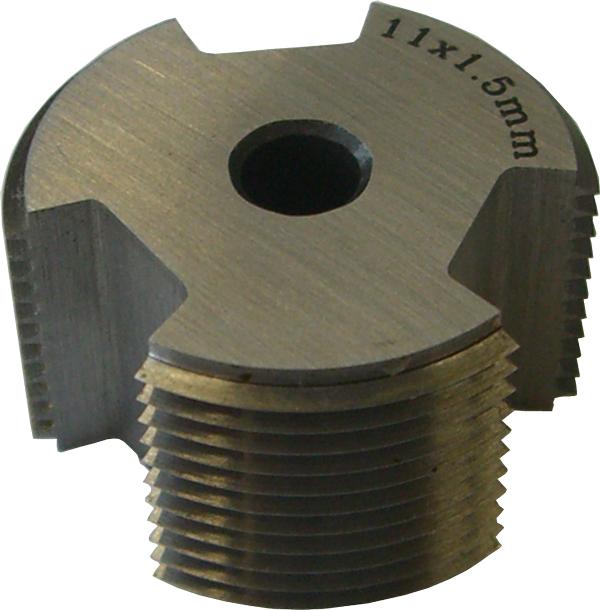

ACC166 | multi-blade cutting tool with 11 blades, 1.5 mm (0.06“) spacing of blades |
|
ACC042 | brush |
Technical specification
| Versions | No. of multi-blade cutting tools | Spacing of blades | Standards |
|---|---|---|---|
| 2087.1 | 1 x 6 blades | 1 mm (0.04") | ISO 2409, Volkswagen TL 226 |
| 2087.2 | 1 x 6 blades | 2 mm (0.08") | ISO 2409, Volkswagen TL 226 |
| 2087.3 | 1 x 6 blades | 3 mm (0.12") | ISO 2409, Volkswagen TL 226 |
| 2087.4 | 3 x 6 blades | 1 mm (0.04"), 2 mm (0.08") and 3 mm (0.12"), exchangeable | ISO 2409, Volkswagen TL 226 |
| 2087.5 | 1 x 11 blades | 1 mm (0.04") | ASTM D 3359 |
| 2087.6 | 1 x 6 blades | 2 mm (0.08") | ASTM D 3359 |
| 2087.15 | 1 x 11 blades | 1.5 mm (0.06") |
| Material head | red anodised aluminium |
| Material multi-blade cutting tool | hardened steel |
| Dimensions (LxWxH) | 160 mm x 26 mm x 80 mm (6.30" x 1.02" x 3.15“) |
| Weight | 245 g (0.54 lbs) |
| Warranty | 2 years |
Standards
| Versions | Standards |
|---|---|
| 2087.1 | ISO 2409 Volkswagen TL 226 |
| 2087.2 | |
| 2087.3 | |
| 2087.4 | |
| 2087.5 | ASTM D3359 |
| 2087.6 | |
| 2087.15 | - |
