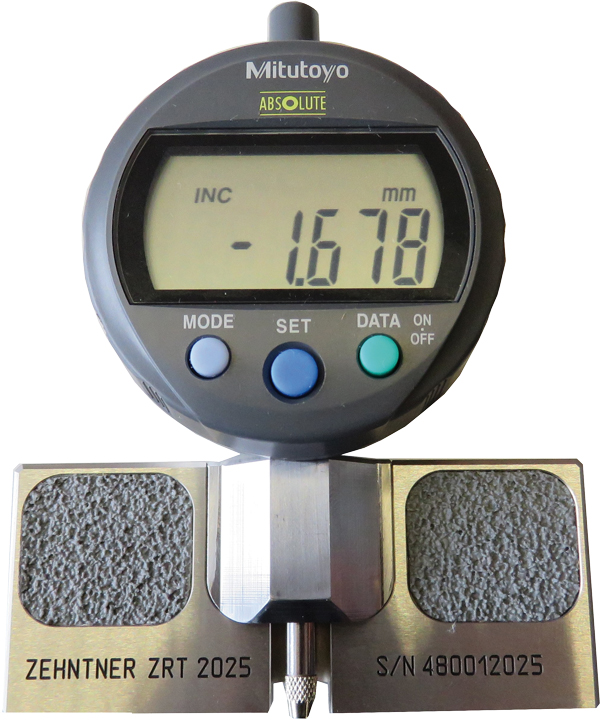

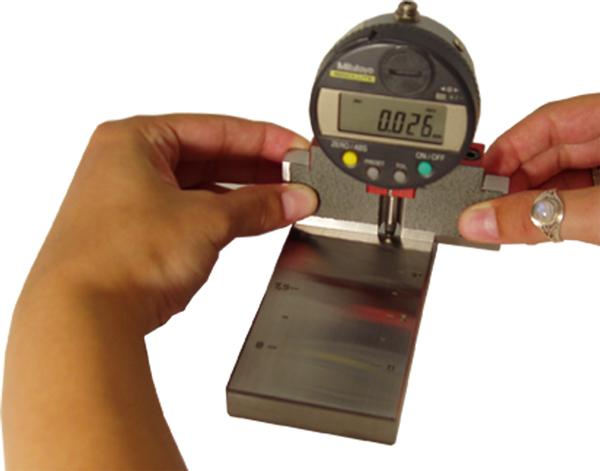

- Instrument for measuring and checking the groove depth of grindometers
- The ideal addition to our ZGR 2020 - 2024 Grindometer
- Easy to handle
- Easy to calibrate
- Reliable results
Click here to request a quotation for this product.
Versions
| Version | Article No. | Description |
|---|---|---|
|
2025 | ZRT 2025 Groove Depth Meter Price request |
Standard delivery
| Standard delivery | |
|---|---|
|
1 groove depth meter |

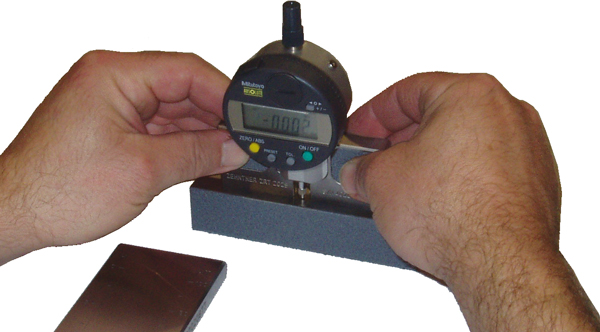

| 1 calibration plate | |
|

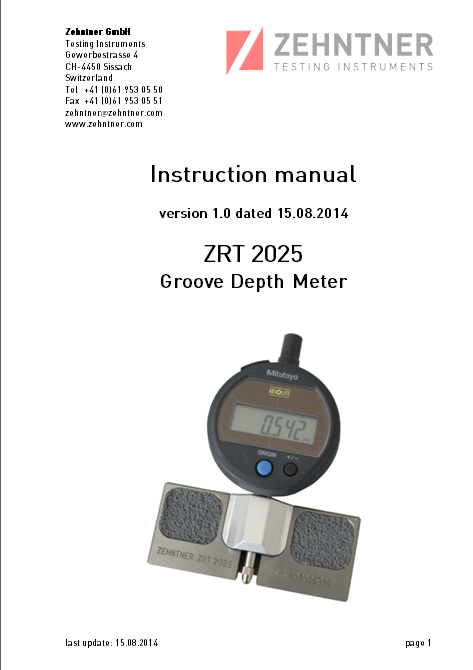

1 instruction manual |
|
1 certificate of manufacturer |
|
1 storage box |
Options
| Option | Article No. | Description |
|---|---|---|
|
ACC600 | calibration and certification ZRT 2025 (incl. certificate of calibration) |
Technical specification
| Material bearing ruler | stainless steel, hardened, thermal isolated |
| Measuring range | 1.68 mm (0.07”) |
| Resolution | 1 µm (0.04 mil) |
| Display | digital |
| Dimensions (LxWxH) | 117 x 90 x 40 mm (4.61 x 3.54 x 1.57“) |
| Standards | ASTM D1210, ASTM D1316, EN 21524 (withdrawn 2002) |
| Weight groove depth meter | 406 g (0.81 lbs) |
| Weight calibration plate | 376 g (0.75 lbs) |
| Warranty | 2 years, 1 year digimatic indicator |
