- The classic portable precision glossmeter for measurement of different surfaces from matt to high gloss usable in all industries
- Objective gloss evaluation with immediate indication of the measured value
- Sturdy construction with aluminium housing and high quality standard
- As option, additional equipment for a higher user convenience
- Easy to handle
- Reliable results
Request a quotation indicating the desired measuring geometries. We would be pleased to measure your samples free of charge for recommending the best choice.
Versions
| Versions | Article No.* | Description |
|---|---|---|
![]() |
1023.20 Price request |
ZGM 1023 Glossmeter 20° x 10 with measuring range from 0 - 1999 GU, switchable to 0 - 199.9 GU |
| 1023.20ACC081 Price request |
||
![]() |
1023.20N Price request |
ZGM 1023 Glossmeter 20° x 10 with fixed measuring range from 0 - 1999 GU |
| 1023.20NACC081 Price request |
||
![]() |

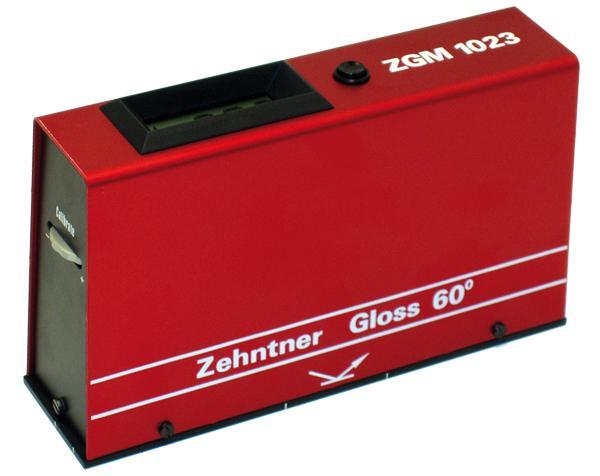

1023.60 Price request |
ZGM 1023 Glossmeter 60° x 10 with measuring range from 0 - 1999 GU, switchable to 0 - 199.9 GU |
| 1023.60ACC081 Price request |
||
![]() |
1023.60M.S.N Price request |
ZGM 1023 Glossmeter 60° mini-measuring head ÷ 10 with fixed measuring range from 0 - 19.99 GU |
| 1023.60M.S.NACC081 Price request |
||
![]() |
1023.60N Price request |
ZGM 1023 Glossmeter 60° x 10 with fixed measuring range from 0 - 1999 GU |
| 1023.60NACC081 Price request |
||
![]() |
1023.75 Price request |
ZGM 1023 Glossmeter 75° ÷ 10 with measuring range from 0 - 19.99 GU, switchable to 0 - 199.9 GU |
| 1023.75ACC081 Price request |
||
![]() |
1023.75N Price request |
ZGM 1023 Glossmeter 75° ÷ 10 with fixed measuring range from 0 - 19.99 GU |
| 1023.75NACC081 Price request |
||
![]() |
1023.75T Price request |
ZGM 1023 Glossmeter 75° Tappi ÷ 10 with measuring range from 0 - 19.99 GU, switchable to 0 - 199.9 GU |
| 1023.75TACC081 Price request |
||
![]() |

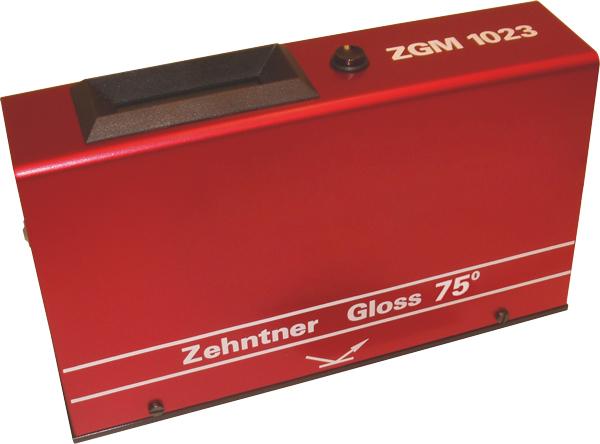

1023.75TN Price request |
ZGM 1023 Glossmeter 75° Tappi ÷ 10 with fixed measuring range from 0 - 19.99 GU |
| 1023.75TNACC081 Price request |
* ACC081-versions will be equipped with ACC1457.TypeA "NEMA-1 plug" except you inform us to do differently.
Standard delivery
Regular standard delivery ZGM 1023 (single angle):• 1 glossmeter
• 1 working standard
• 1 zero standard
• 1 universal battery charger ACC1457 (100 V to 240 V, 50 Hz to 60 Hz) incl. connection cable and AC plug*
• 1 connection cable
• 1 spare lamp with allen key
• 1 screw driver
• 1 instruction manual
• 1 certificate of manufacturer
• 1 certificate of calibration
• 1 carrying case
* There are three different plugs available: ACC1457.EU "Europlug Type C", ACC1457.TypeA "NEMA-1 plug" and ACC1457.TypeG "British 13 amp plug".
Standard delivery ZGM 1023 mini-measuring head (single angle):
different to regular standard delivery:
• 1 glossmeter with measuring button (no measuring geometry)
• 1 mini-measuring head
• 1 calibration unit
| Feature | |
|---|---|
| Unique mini-measuring head for gloss measurement on very confined areas, curved surfaces and surfaces being not plane | |
Technical specification
| Version | Geometry | Measuring range | Standards |
|---|---|---|---|
| 1023.20 | 20° | 0 - 1999 GU, switchable to 0 - 199.9 GU |
ASTM D523, ASTM D2457, BS 3900-D6, DIN 67530, ISO 2813, JIS Z 8741 |
| 1023.20ACC081 | |||
| 1023.20N | 20° | 0 - 1999 GU | |
| 1023.20NACC081 | |||
| 1023.60 | 60° | 0 - 1999 GU, switchable to 0 - 199.9 GU |
ASTM D523, ASTM D2457, BS 3900-D6, DIN 67530, ISO 2813, JIS Z 8741 |
| 1023.60ACC081 | |||
| 1023.60M.S.N | 60° | 0 - 19.99 GU | |
| 1023.60M.S.NACC081 | |||
| 1023.60N | 60° | 0 - 1999 GU | |
| 1023.60NACC081 | |||
| 1023.75 | 75° | 0 - 19.99 GU, switchable to 0 - 199.9 GU |
Zehntner |
| 1023.75ACC081 | |||
| 1023.75N | 75° | 0 - 19.99 GU | |
| 1023.75NACC081 | |||
| 1023.75T | 75° Tappi | 0 - 19.99 GU, switchable to 0 - 199.9 GU |
Tappi T 480, ISO 8254-1 |
| 1023.75TACC081 | |||
| 1023.75TN | 75° Tappi | 0 - 19.99 GU | |
| 1023.75TNACC081 |
| Measuring accuracy | ± 1 % |
| Measuring sensor adaption | V(λ) |
| Display | LCD, 3 ½ digits |
| Light source | halogen lamp, standard illuminant A |
| Power supply | integrated, rechargeable accumulator |
| Calibration | traceable to an ISO 17025 accredited laboratory |
| Dimensions (LxWxH) | 190 x 53 x 110 mm (7.48 x 2.09 x 4.33“) |
| Dimensions (LxWxH) mini-measuring head 60° | 78 x 12 x 40 mm (3.07 x 0.47 x 1.57“) |
| Weight | 1 kg (2.20 Ibs) |
| Weight mini-measuring head 60° | 60 - 78 g (0.13 - 0.17 lbs) |
| Warranty | 2 years |
Standards
| Version | Geometry | Standards |
|---|---|---|
| 1023.20 | 20° | ASTM D523, ASTM D2457, BS 3900-D6, DIN 67530, ISO 2813, JIS Z 8741 |
| 1023.20ACC081 | ||
| 1023.20N | 20° | |
| 1023.20NACC081 | ||
| 1023.60 | 60° | ASTM D523, ASTM D2457, BS 3900-D6, DIN 67530, ISO 2813, JIS Z 8741 |
| 1023.60ACC081 | ||
| 1023.60M.S.N | 60° | |
| 1023.60M.S.NACC081 | ||
| 1023.60N | 60° | |
| 1023.60NACC081 | ||
| 1023.75 | 75° | Zehntner |
| 1023.75ACC081 | ||
| 1023.75N | 75° | |
| 1023.75NACC081 | ||
| 1023.75T | 75° Tappi | Tappi T 480, ISO 8254-1 |
| 1023.75TACC081 | ||
| 1023.75TN | 75° Tappi | |
| 1023.75TNACC081 |
