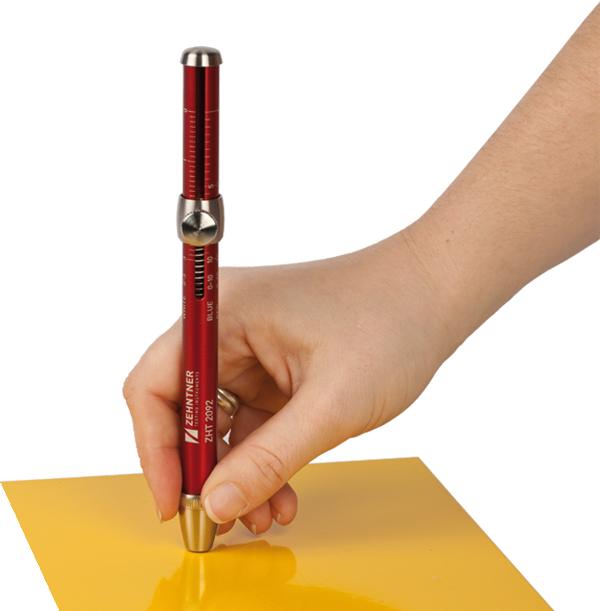

ZHT 2092 - 2093 Pocket Hardness Testers

Pocket testers for hardness tests on flat and curved surfaces

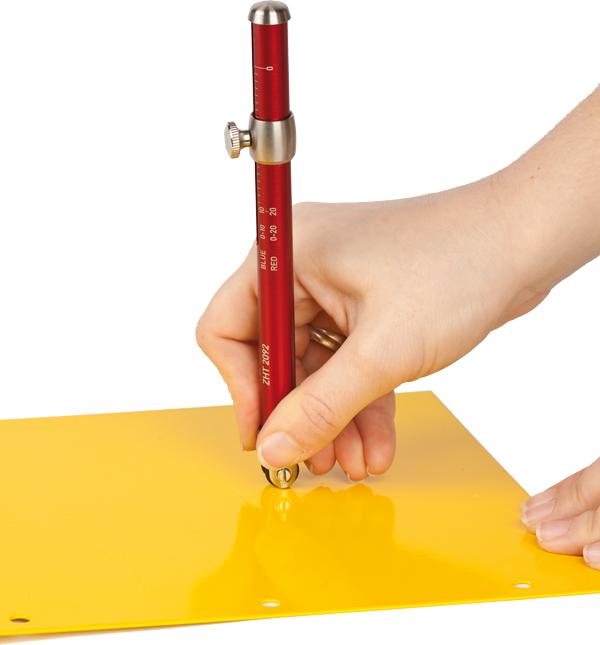

Model ZHT 2093 with rubber guiding wheels protects soft surfaces from scratching

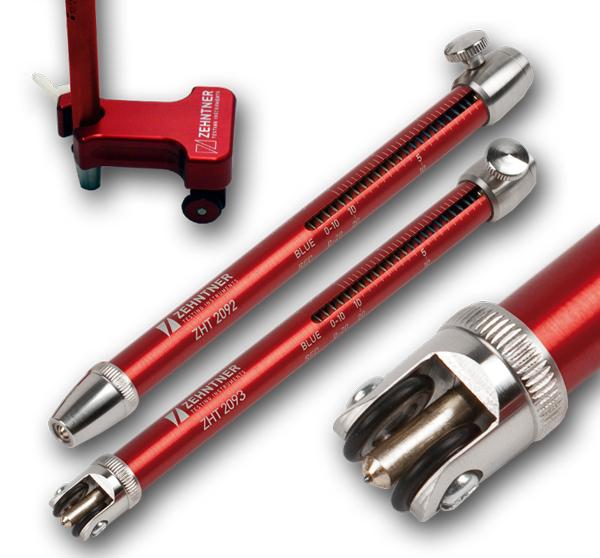

Optional trolley facilitates excerting the correct pressure on the test panel
The alternative to the ZSH 2090 Pencil hardness tester
Easy to handle

Click here to request a quotation for this product. If possible, please indicate the desired version.

Versions

Versions	Article No.	Description

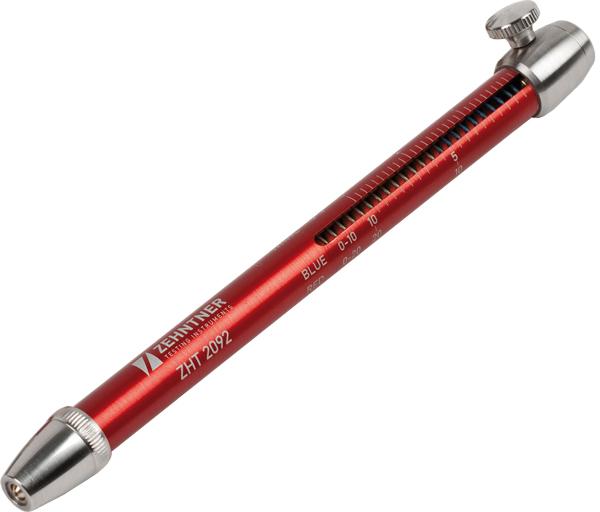

	2092	ZHT 2092 Pocket hardness tester with standard testing head Price request

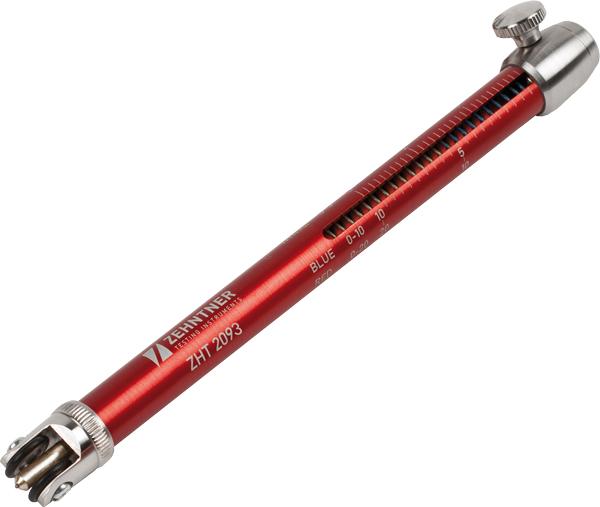

	2093	ZHT 2093 Pocket hardness tester with rubber guiding wheels at testing head Price request

• 1 hardness tester
• 1 tip 0.75 mm (0.03") (Bosch)

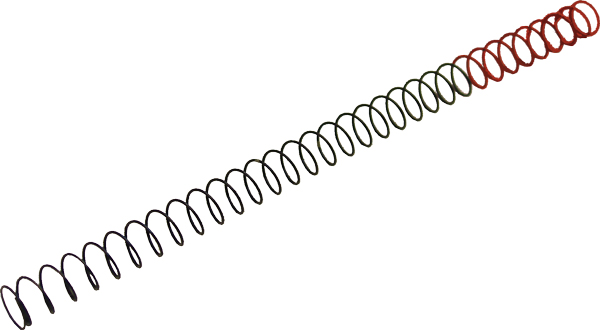

• 3 pressure springs of varying forces:

• 1 instruction manual
• 1 certificate of manufacturer
• 1 carrying case

Features
	the instrument consists of a carbide needle clamped into a sleeve with an adjustable pressure spring
	the wide contact area allows an easier and preciser positioning on the specimen
	by means of the colour code on the springs and on the instrument, the different forces can be read off easily
	the rubber guiding wheels of the ZSH 2093 protect the surface from scratches and facilitates assessment of the results
	optional trolley for a higher user convenience

Option	Article No.	Description

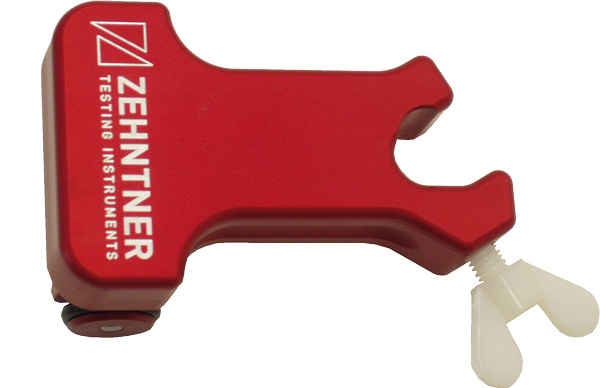

	ACC112	trolley
	ACC107	tip 1.0 mm (0.04") (in dependence on ISO 1518)

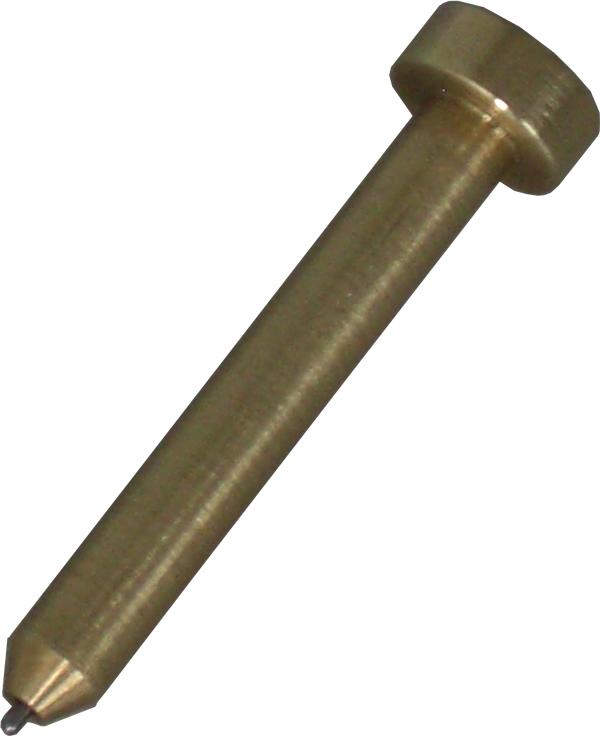

	ACC108	tip 0.5 mm (0.02") (van Laar)
	ACC626	calibration and certification ZHT 2092-2093 (incl. certificate of calibration)

Version	Testing head	Pictures testing head
ZHT 2092	standard

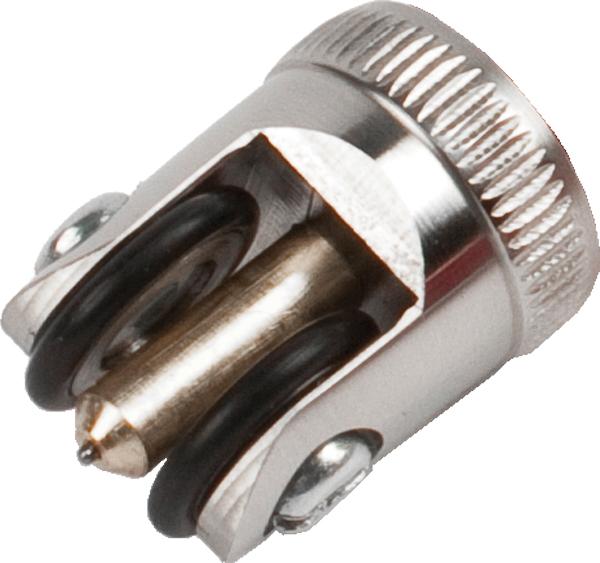

ZHT 2093	with rubber guiding wheels
