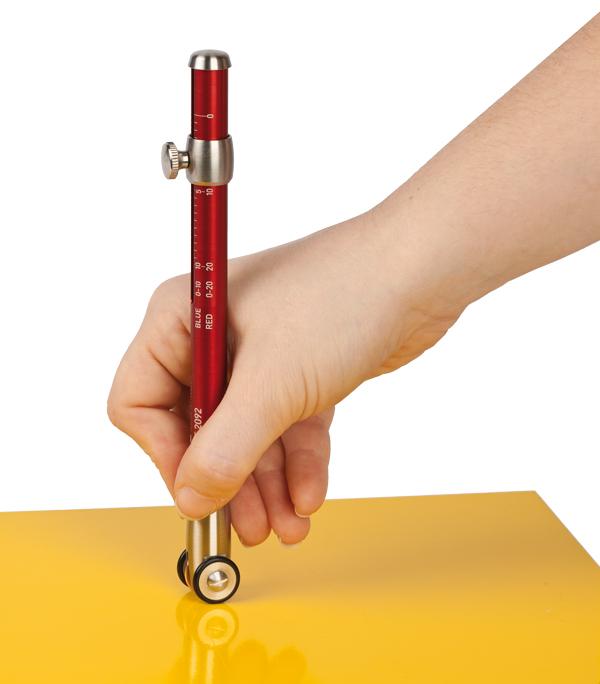

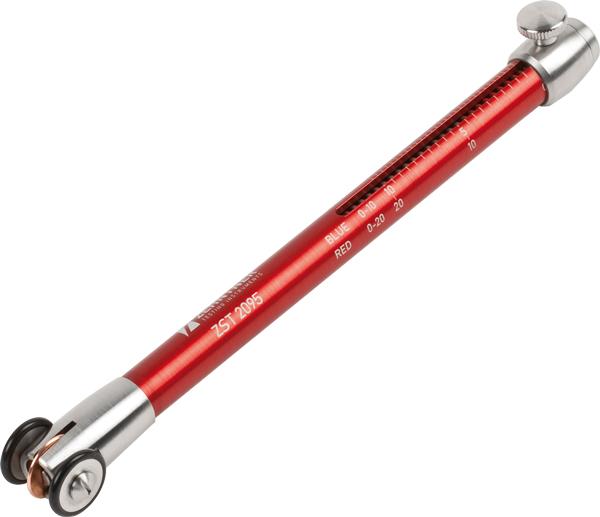

- Pocket tester for determination of scratch resistance on painted or plastic surfaces
- Three colour coded pressure springs exert an adjustable force onto the test disc
- Reliable results
- Easy to handle
Click here to request a quotation for this product.
Versions
| Version | Article No. | Description |
|---|---|---|
 |
2095 | ZST 2095 Mar Resistance Tester Price request |
Standard delivery

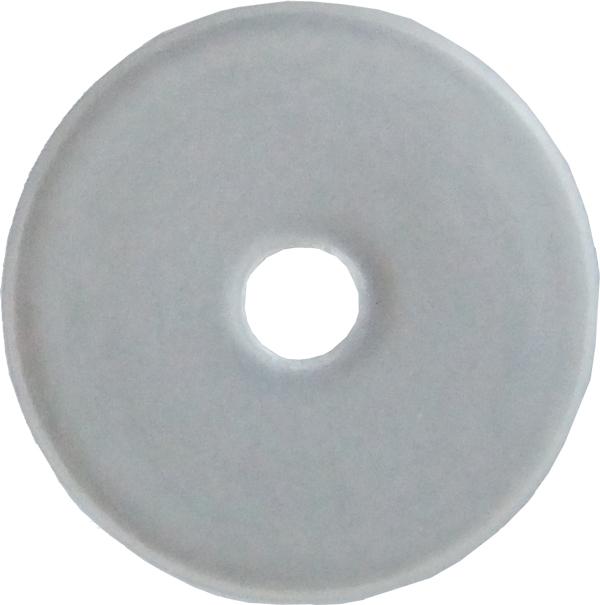

• 1 mar resistance tester• 1 test disc duroplast
• 1 test disc copper
• 1 test disc steel
• 3 pressure springs of varying forces:
| Forces | Colour code | Resolution |
|---|---|---|
| 0 - 3 N (0 - 0.3 kg) (0.661 lbs) | white | 10 g (0.022 lbs) |
| 0 - 10 N (0 - 1 kg) (2.205 lbs) | blue | 50 g (0.11 lbs) |
| 0 - 20 N (0 - 2 kg) (4.409 lbs) | red | 100 g (0.22 lbs) |
• 1 instruction manual
• 1 certificate of manufacturer
• 1 carrying case
| Features | |
|---|---|

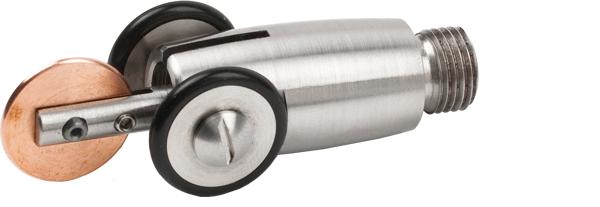

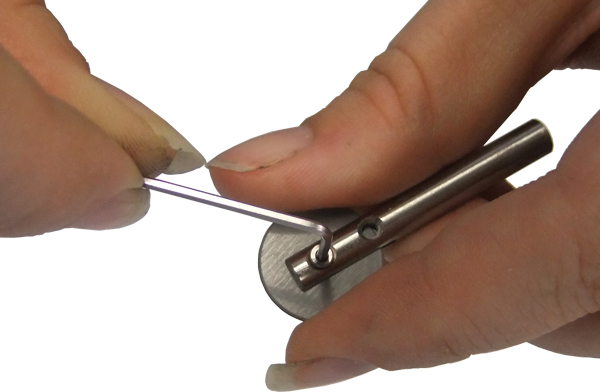

| The instrument consists of a sleeve with a pressure spring that can be set at various tensions by using a slide. The pressure spring acts on the attached test disc protruding from the sleeve. A clamping screw fixes the slide and maintains a constant spring tension | |
| By means of the colour code, the different forces are found | |
Technical specification
| Material pressure springs | spring steel |
| Material test discs | duroplast, copper, steel |
| Material optional test discs | PMMA or PVC |
| Dimensions (LxØ) | 190 x Ø 15 mm (7.48 x Ø 0.6“) |
| Weight | 94 g (0.21 lbs) |
| Standards | DIN 55656, DIN SPEC 91064 |
| Warranty | 2 years |
